There is a new release (version 4.09.01) available of our 3D framework program XFrame3d.
Click here to install the new release.
The most important new features:
1. Stirrup design is optimized

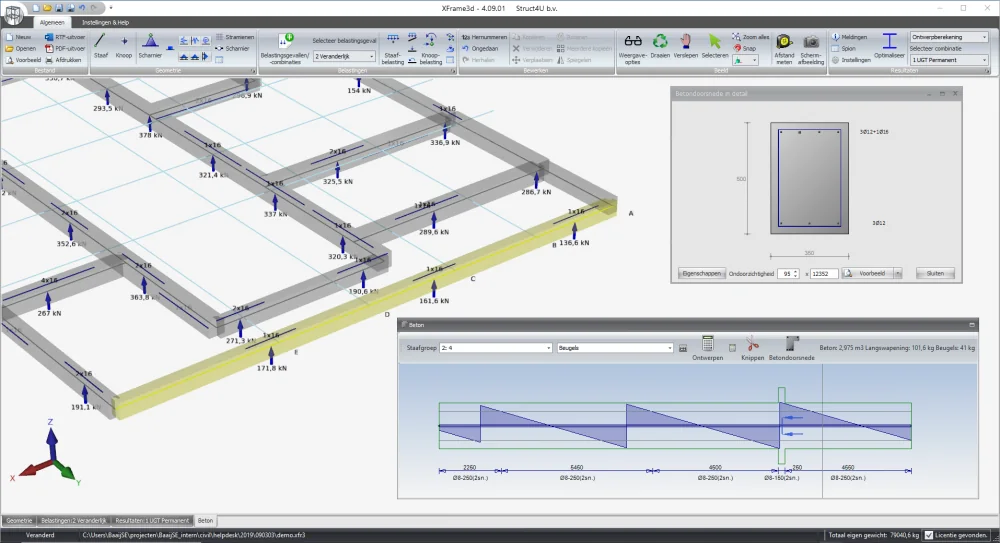

In XFrame3D you can also design your piled concrete foundations quickly and easily. The design of the stirrups has been improved. The distances over which additional stirrups may be required due to shear and torsion are determined more accurately. As a result, fewer stirrups needed.
2. The output has been further improved

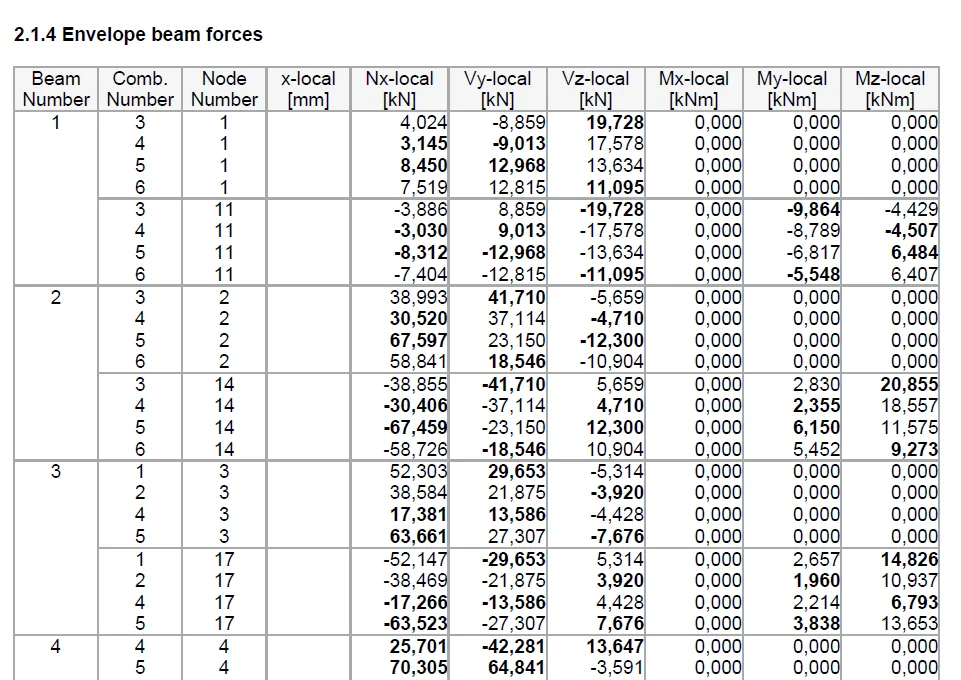

The output of enveloping beam forces has been improved by sorting the columns. Also, irrelevant lines have been removed. The output is more compact and easier to read.
3. Click on dimension line
Changing a distance by clicking on the number in the dimension line has been improved. The number is now selected so that it can be changed immediately. It is therefore even more intuitive.
With XFrame3d you have a powerful tool at your disposal with which you can dimension your 3D construction real fast.
