There is a new release (version 5.04.01) available of 3D framework program XFrame3d.
In release notes you will find an overview of all changes.
Click here to install the latest version (5.04.01) immediately.
The most important new features:
1. New Cross section line

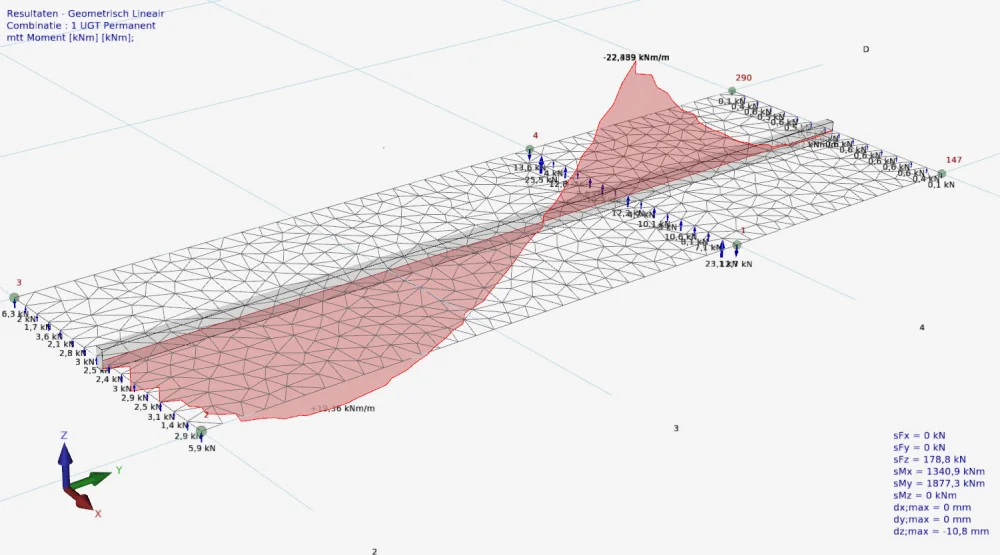

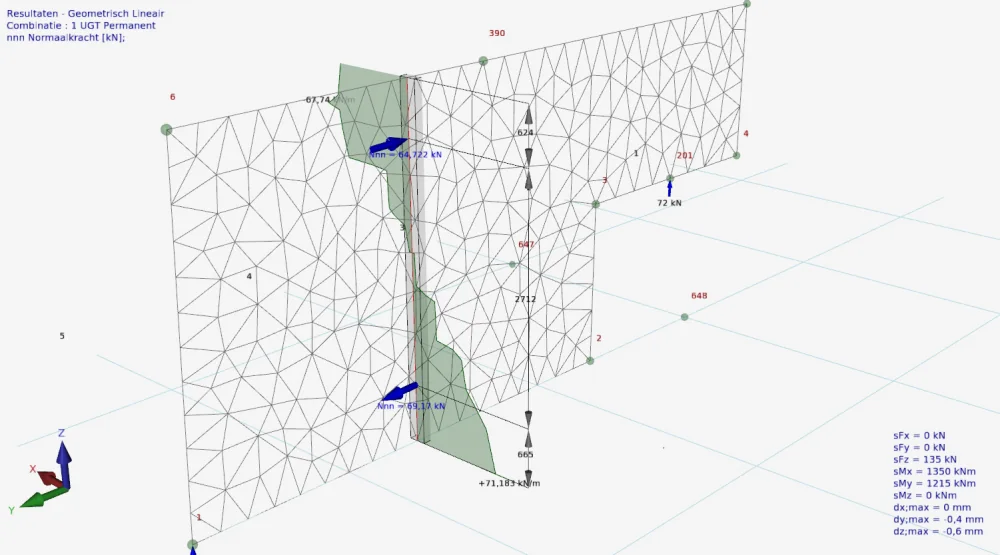

Plates - It is possible to determine forces in a cross section of a plate. The cross section line can be drawn randomly.
2. New Deflection
Deflection: Beams are now also tested for additional deflection and final deflection. It is also possible to specify a pre-camber for a steel beam.
3. New Import of *.xfr3
It is possible to import another XFrame3d model.
4. New Input of relative or absolute coordinates
The way you enter beams or plate edges and also how you move beams or plates has been extended with an extra option. While you are drawing, you can use the space bar to display a new dialog where you can enter relative or absolute coordinates directly. This works intuitively so you can enter your construction even faster and easier.
In release notes you will find an overview of all changes.
Click here to install the latest version (5.04.01) immediately.
