There is a new release (version 5.06.02) available of our 3D program XFEM4U.
Click here to install the new release.
On release notes you will find an overview of all changes
The most important new features:

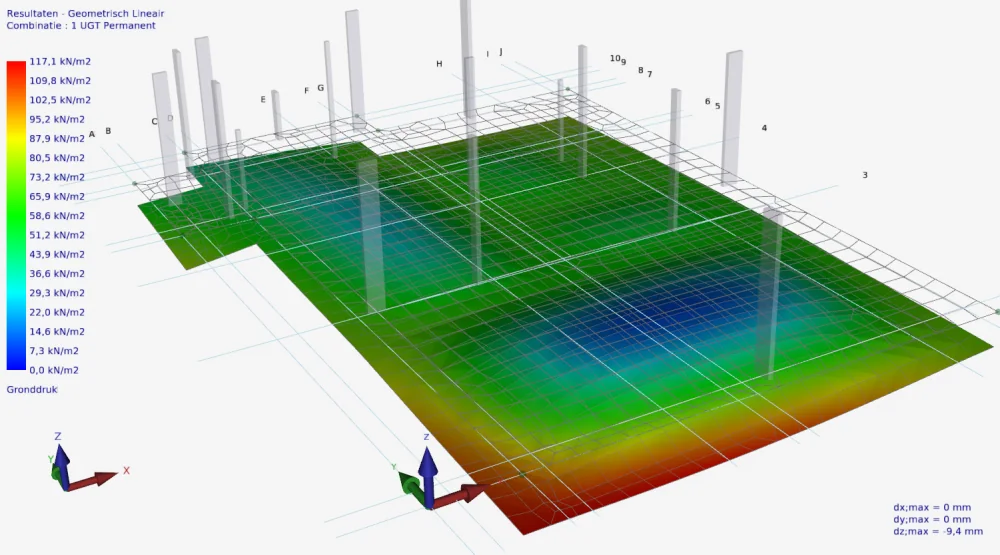

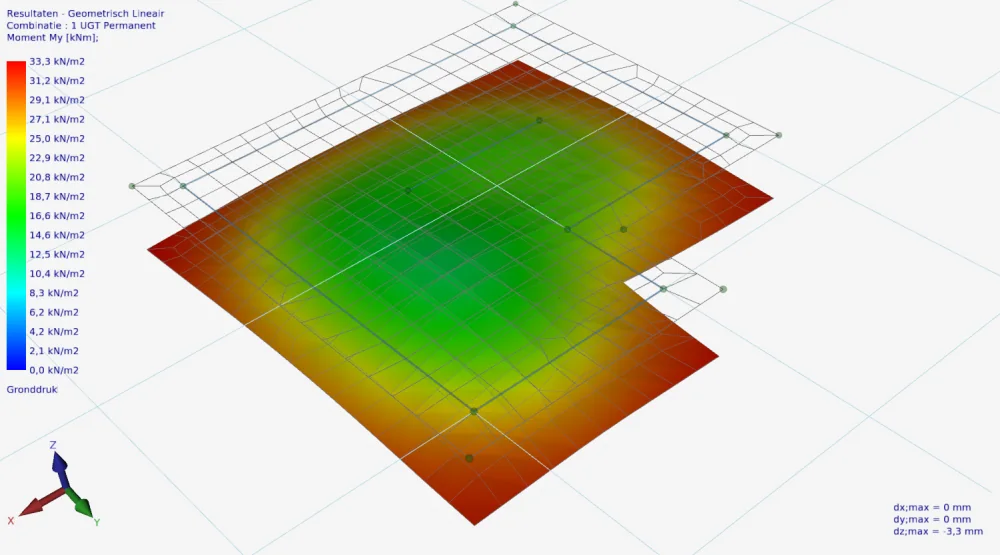

1. New Soil pressures for slabs on an elastic soil
For slabs on an elastic soil, soil pressures can now be displayed in color.

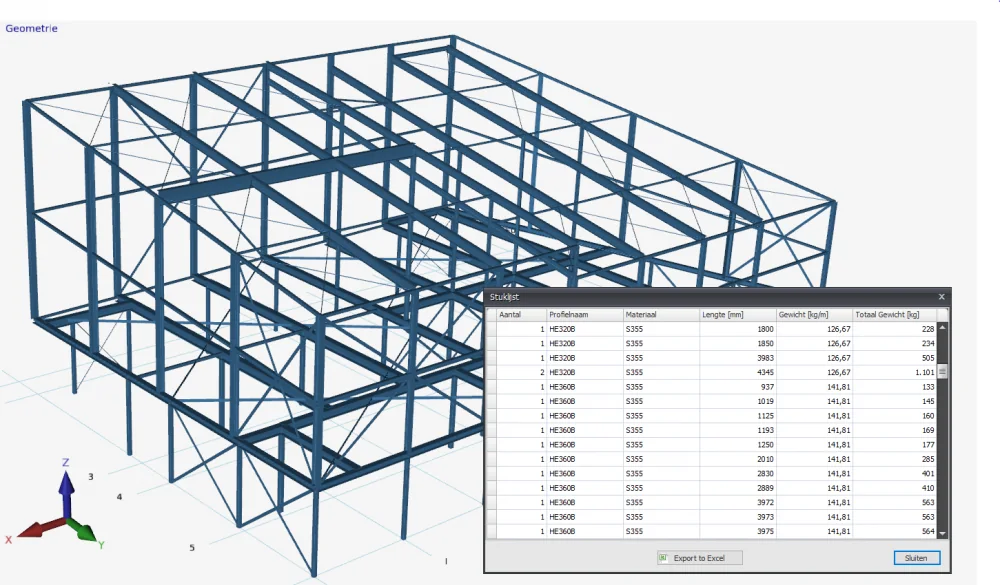

2. New Bill of materials
A new (context) menu function "Create bill of materials" allows the creation of a Excel file of all visible beams. (helpdesk #1038). So you can quickly create a bill of materials with this.

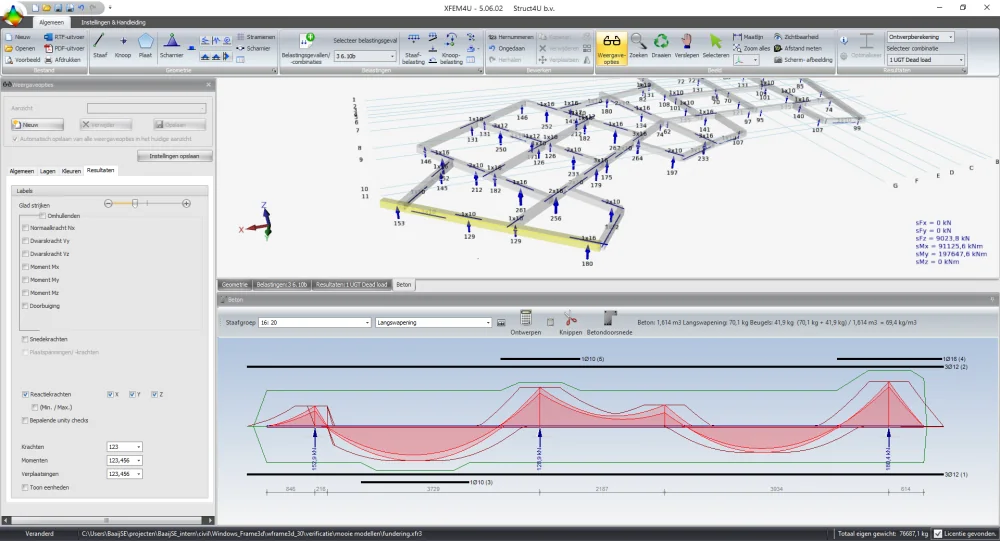

3. New Beam Grids - Pile Optimization
In the side view of the concrete beam, dimension lines are drawn between the nodes and piles. You can now easily adjust the pile distances by changing the dimension line. After changing this, the beam grid is automatically recalculated and you can immediately see the result.
4. New menu option Visibility
As you know, with the menu option "Visibility" you can easily make a selection of beams and/or plates visible. New is that when you now create output, only the visible beams and/or plates are printed. So you can very easily and quickly make an output of a part of your construction.
In release notes you will find an overview of all changes.
Click here to install the new XFEM4U version (5.06.02) immediately.
To stay up to date with the latest developments you can follow us on Linkedin.
