Plates in XFrame3d
There is a new release (patch version 5.00.03) available of 3D framework program XFrame3d.
In release notes you will find an overview of all changes.
Click here to install the latest version (5.00.03) immediately.
The most important new features:
1. Connection plates has been improved
When meshing the plate, the number of elements on the edge with one or more connecting plates is automatically equalized. The mesh therefore always connects with the mesh of a connecting slab or wall.

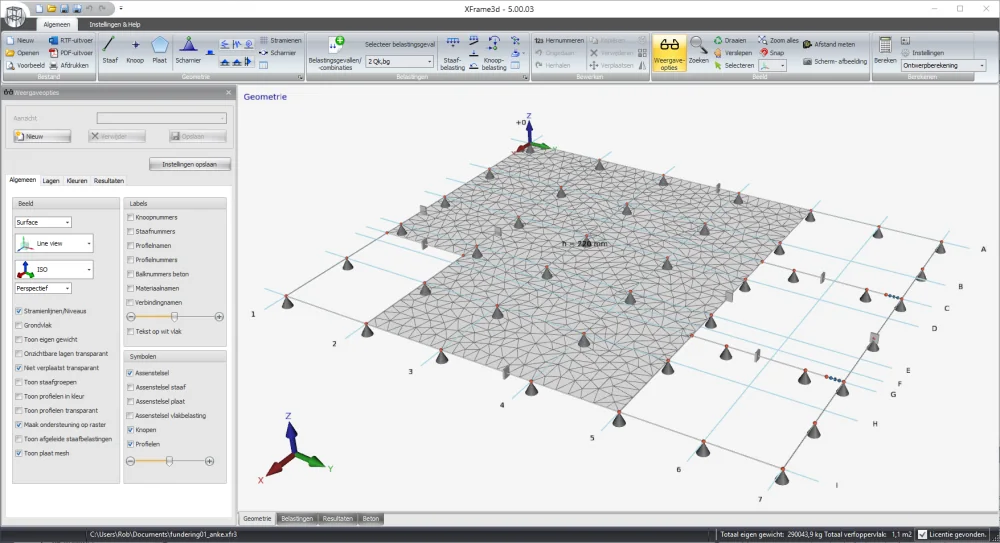

2. Nodes within plate contour

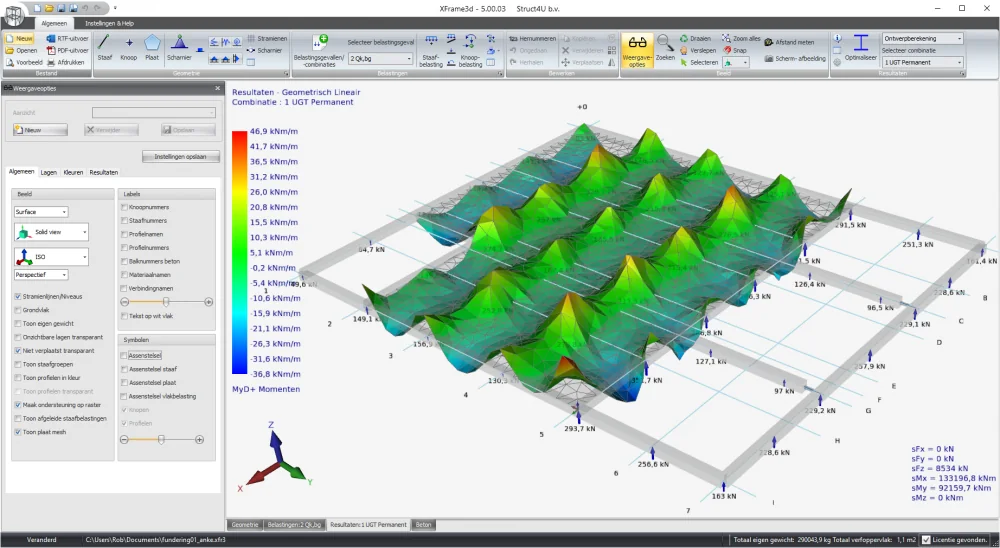

Nodes that fall within the plate contour are incorporated into the mesh after the plate has been meshed. In this way, a point-shaped supported plate can now be inserted very easily. Or a steel construction supported by a plate.
