There are new releases available of
- XFEM4U 2024.2 download release notes
- XFrame2D 2024.1 download release notes
- XBeam2D 2024.1 download release notes
- XConstruct 2024.1 download release notes
The most important new features:
1. New In XFEM4U: Elastic supporting beams / beams on an elastic soil
It is possible to specify an elastic soil for each beam. The elastic soil is schematized as a series of springs that can only absorb positive reactions. Possible "loosening" is therefore provided. The spring spacing can be influenced. The modulus of subgrade reaction (kN/m3) is automatically converted to springs with the appropriate spring value (kN/m).
You can now calculate a slab-on-grade foundation in no time.

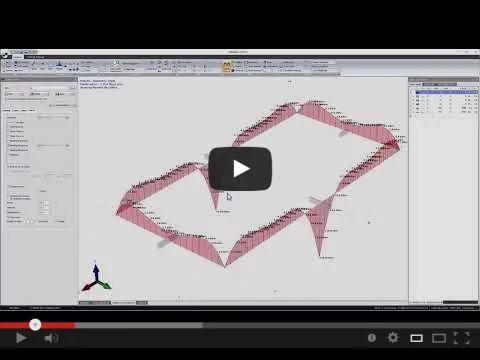

How does it work? Watch the demo below.
2. New In XFEM4U - Display of plate stresses and forces
It is now possible to display values within a certain range by entering the maximum and/or minimum value. For example, you can display only those elements with a bending stress greater than 100 N/mm2.

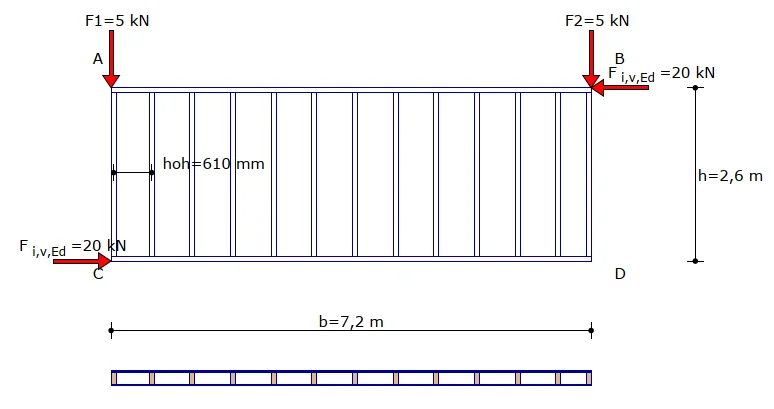

3. New In XConstruct: Wood Framing Wall Stability
Wood Framing Wall Stability check is added as a new module. With this module you can quickly test the stability of your wood framing wall. This module contains the calculation of a wall according to Method A of the Eurocode 5 H 9.2.4.2. With this method you can test the shear strength of an HSB wall.

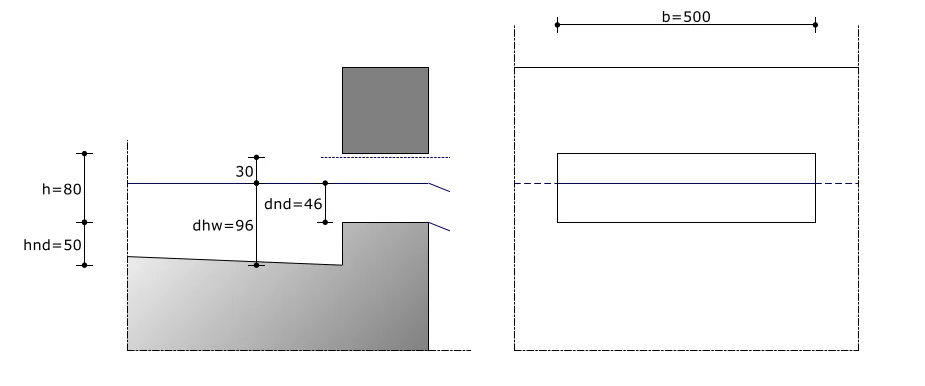

4. New In XConstruct: Roof spout
Calculation of a roof spout is added as a new module.
